XRT-MS-012 1 In 6 Out Vertical Fiber Optic Splice Box Splice Closure
+86 18138701763‬
cici@qtftth.com
14 months Warranty
Our products are strictly inspected to ensure they are working properly before shipment. At the same time, our products have a 14 months warranty....
Product Highlights

ONE-STOP Fiber Optic Superstore
High-quality pre-sales, including solution customization, sample request, test reports, and perfect warranty & return policies allow you to enjoy worry-free experience.
Short lead time, Deliver on time, Strict quality checking before shipment.
Our professional sales team win the reputation in home and abroad with the outstanding service and high quality products.
24/5 around-the-clock customer service and technical support for tackling any complex issue anytime.
Description
Service
Warranty
FAQ

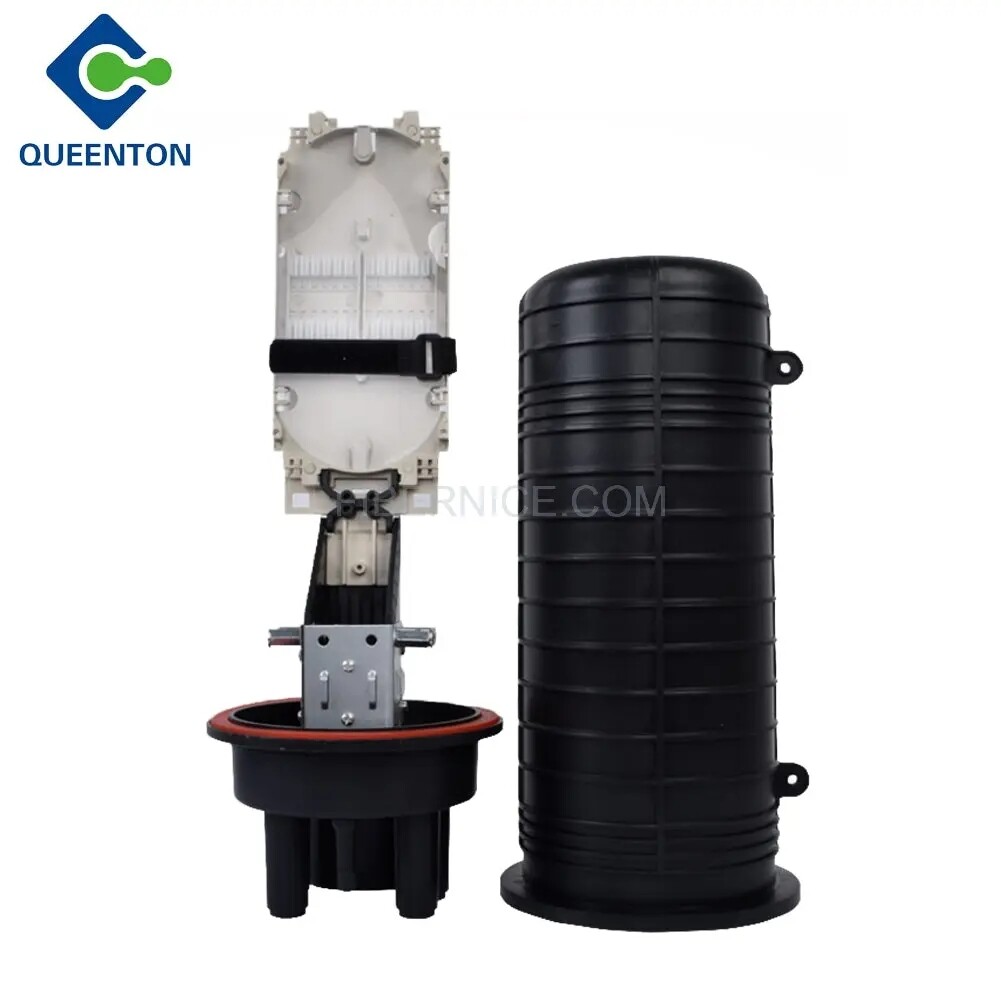

PRODUCT DESCRIPTION

The optical cable connector box is used for direct connection and large capacity discontinuous connection of optical fiber cable, and plays a role of protecting optical fiber cable joint. It can meet the construction requirements for laying optical fiber cables, underground, pipelines and wells

Features

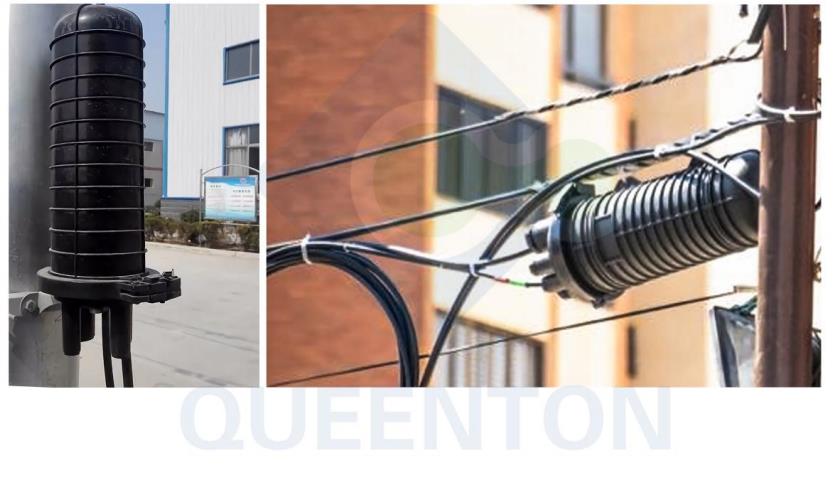

1. It is suitable for the aerial.

2. All kinds of accessories can be configured.

3. An aging resistance: good stability to heat, heat radiation, air, ozone etc..

4. The purpose of corrosion resistance: high resistance to dilute acid, salt, oxidizing agent, aliphatic hydrocarbons etc..

5. The purpose of sealing technology: using repeatable opening seal components, to ensure airtight The purpose of sealing technology: using repeatable opening seal components, to ensure airtight good waterproof performance.

6. All the mechanical properties: the ability to endure harsh conditions such as vibration, impact, cable tensile distortion and strong temperature change etc..

Locking device: no special tools are needed for easy installation and repeated opening

Model No.XRT-MS-012
ColorBlack
Capacity12cores(12core/tray*1trays)
24cores(24core/tray*1trays)
48cores(24core/tray*2trays)
72cores(24core/tray*3trays)
96cores(24core/tray*4trays)
144cores(24core/tray*6trays)
Protection LevelIP68
MaterialABS
Inlet/Outlet1 inlet 6 out
Product SizeH480*Φ140mm
Scope of inlet (1in)Oval shape58*28mm
Scope of outet(4out) Round shapeΦ23mm
StructureHeat Shrinkable sealing
data-mce-src=
data-mce-src=
NoNamedescriptionqty/pcs
1Plastic tie3mm*120mm/white4
2Splice sleeve60mm*3.0*1.5Same as splice Closure Cores
3Heat shrink tube
black(remark:inner wall spiral coating)6
4Heat shrink tube
black(Big heat shrink tube)1
5Cable splitte
small size1
6Throat hoop

8
7Aerial hand kit
Iron +pole+screw1
